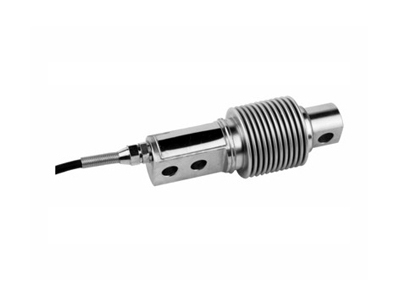

BL-601型
描述
◆ 料斗秤、皮帶秤、配料系統
Hopper scale, Belt scale,Blending sytem

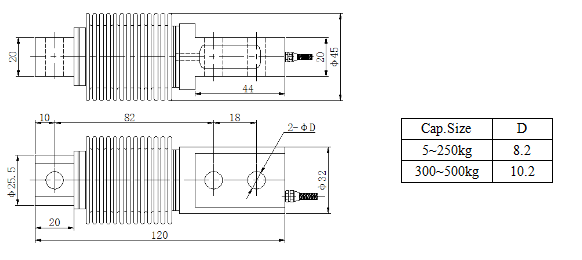

◆ 外形尺寸Dimensions （單位Unit: mm）:
◆ 技術參數Technical parameter:
|
額定載荷Reted capacities (Emax) |
5,10,20,30,40,50,75,100,150,200,250,300,500kg |
|
靈敏度 Sensitivity |
2.0±0.002 mV/V |
|
精度等級 Accuracy class |
±0.02% F.S |
|
零點平衡 Zero balance |
±1% F.S |
|
零點溫度影響 Temp. effect on zero |
±0.02% F.S/10℃ |
|
輸出溫度影響 Temp. effect on Span |
±0.02% F.S/10℃ |
|
輸入阻抗 Input resistance |
400±20Ω |
|
輸出阻抗 Output resistance |
352±3Ω |
|
絕緣電阻 Insulation resistance |
≥5000MΩ |
|
溫度補償范圍 Temperature range compensated |
-10~+40℃ |
|
工作溫度范圍 Operating Temperature Range |
-30~+70℃ |
|
安全過載 Maximum safe over load |
150%F.S |
|
極限過載 Ultimate over load |
250%F.S |
|
推薦激勵電壓 Recommend excitation voltage |
10~12V DC |
|
最大激勵電壓 Maximum excitation voltage |
15V DC |
|
密封等級 Sealing Class |
IP67 |
|
材質 Element material |
合金鋼Alloy Steel |
|
電纜 Cable |
Length：3m |
